Automatic packing machine system equipment

Product Name

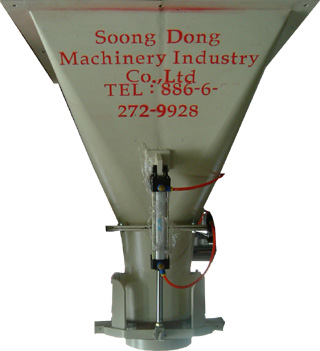

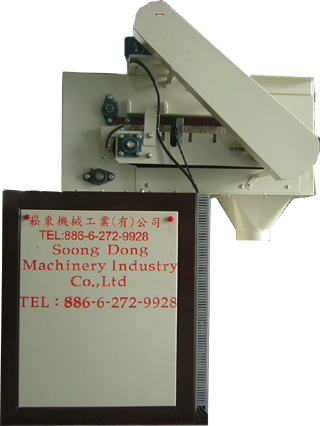

Auto Packing Machine
Applications：
 ＊ For automatic measuring and packaging of particular materials, the best choice for automation and saving labor.
＊ High speed and high precision, applicable to feedstuff, fertilizer, rice and chemical factories, etc. for package.
Characteristic：

＊ Free-falling type packer, with simplified feeding flow, enhanced speed and easy maintenance.
＊ Electronic Load Cell with precise measuring capacity.
＊ Air cylinder brake type two-stage shutter feeding.
＊ Easy operation, with fall compensation, upper/lower limit deflection settings, alert for exceeding the limits and packing techniques, etc.

Modle：
YN-2SE
YN-2DE
Weight range：
10 ~ 60㎏/bag
10 ~ 60㎏/bag
Speed：
300 ~ 450bags/hour
600 ~ 800bags/hour
Accuracy：
0.10%
0.10%
Power source：
110V/220V
110V/220V
